DDC:
4 standard I2s output wiring configurations, including Audio GD standard
Availability: In Stock

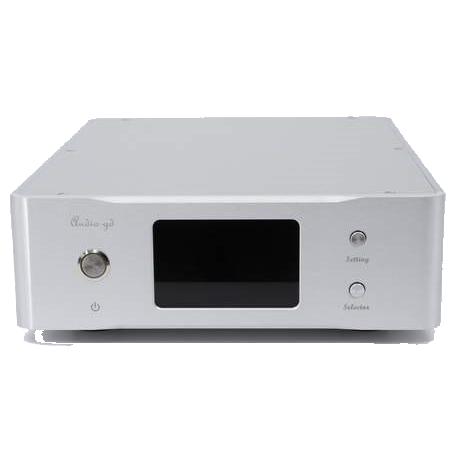

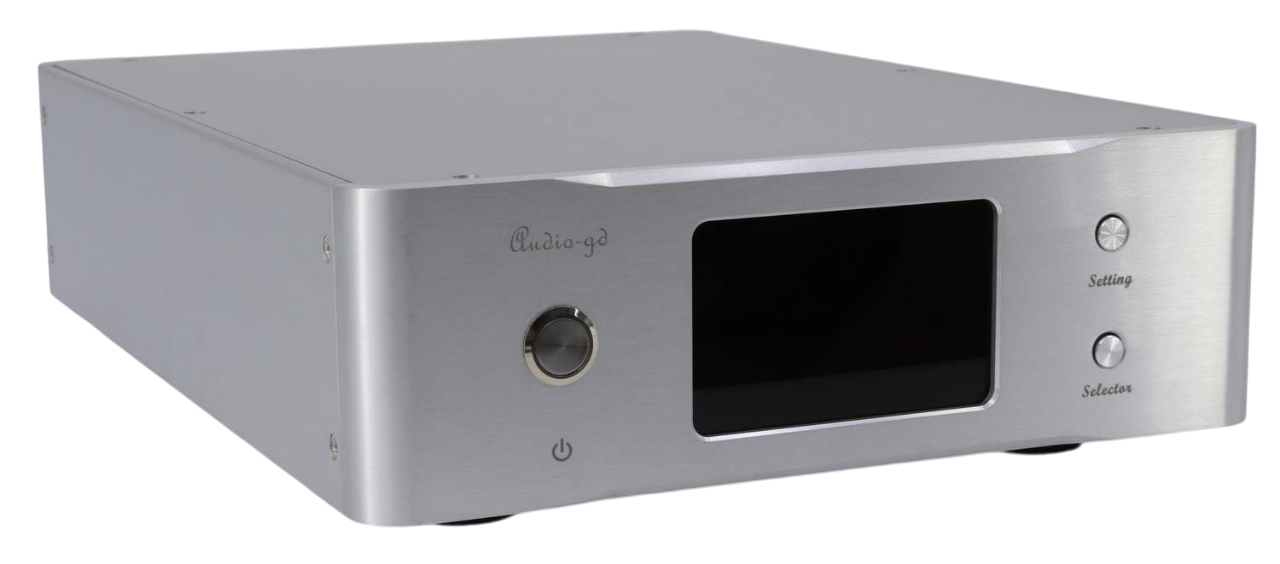

DI25-HE
Regenerative Power Supply Digital Interface
Brands: Audio-GD
SKU: C88021263
₱ 81,389.00
Regenerative Power Supply Digital Interface
Accsilicon AS318B 90/98M clocks for reclocking and jitter rejection
50/75 ohm 10MHz clock input and output

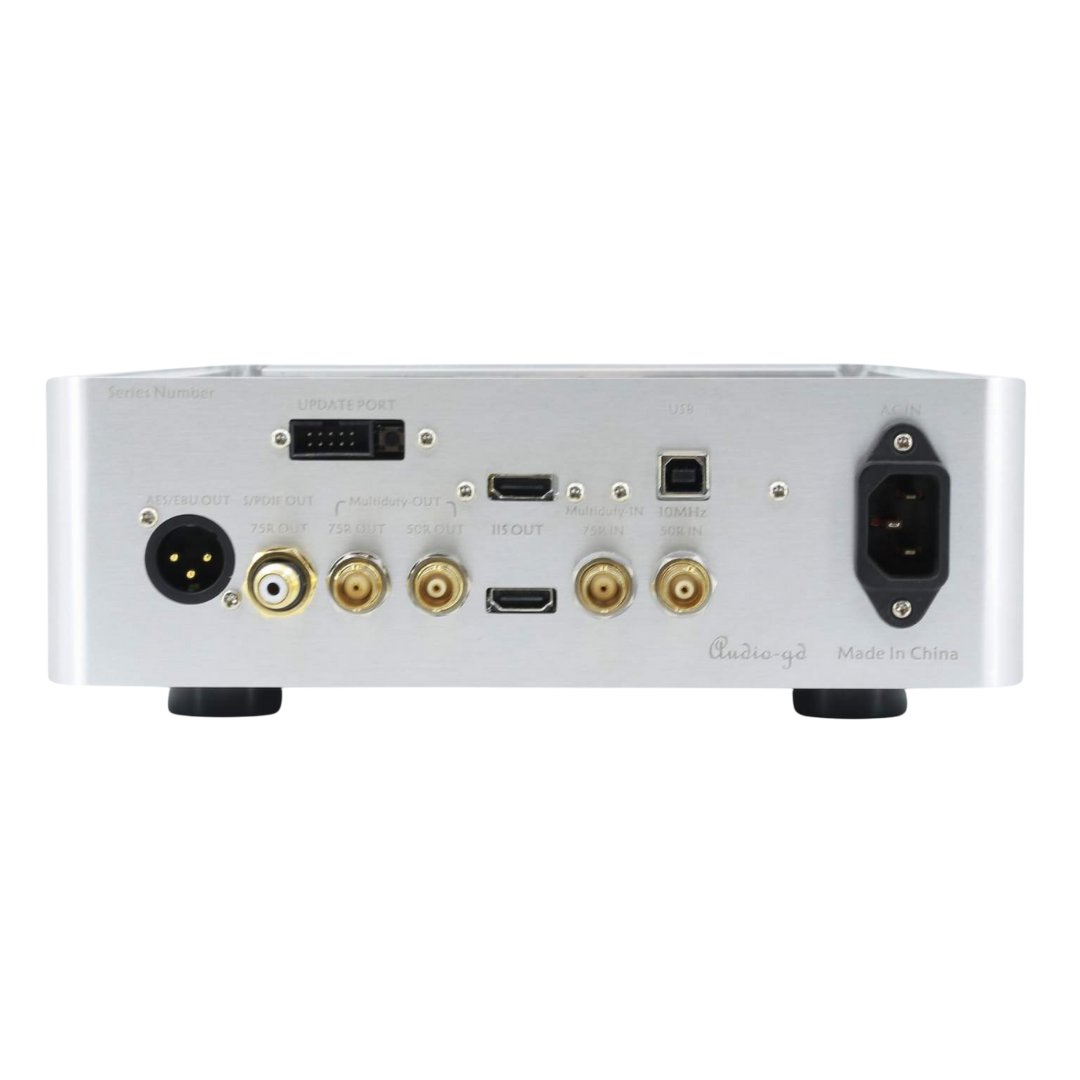

Inputs: I2s, Asynchronous USB, 10Mhz Clock
Output: I2s, Coaxial, AES/EBU, 10Mhz Clock
Dimensions(W x L x H): 240 mm x 340 mm x 85 mm
Weight: 5 kg
Description
Specifications
Additional information
| Weight | 5 kg |
|---|---|
| Dimensions | 340 × 240 × 85 mm |
| 10M external clock input | 50 or 75 ohm, 0.3Vpp- 3Vpp |
| Clock output | 10MHz , >9DBm @50 ohm |
| USB input | USB2.0 – USB3.0 |
| HDMI-IIS output | 3.3V LDVS @ 100 ohms |
| AES/EBU output | 3.3Vp-p @110 ohms |
| Support operate system (USB) | Windows, OSX, Linux, ISO |
| Support sampling | HDMI and USB : 44.1kHz – 384kHz /32Bit DSD64-512 |
| Power Requirement | Version 1: 100-120V AC 50/60 Hz |
| Power Consumption | 17W |
| Accessories | USB cable *1 |
