₱ 69,999.00
Truly balanced fully discrete R2R ladder DAC using 8 fully discrete DA converters(2 DA-8 boards)
FPGA controlled boards and decoding
Resistor Controlled Volume Control with upto 0.05% accuracy

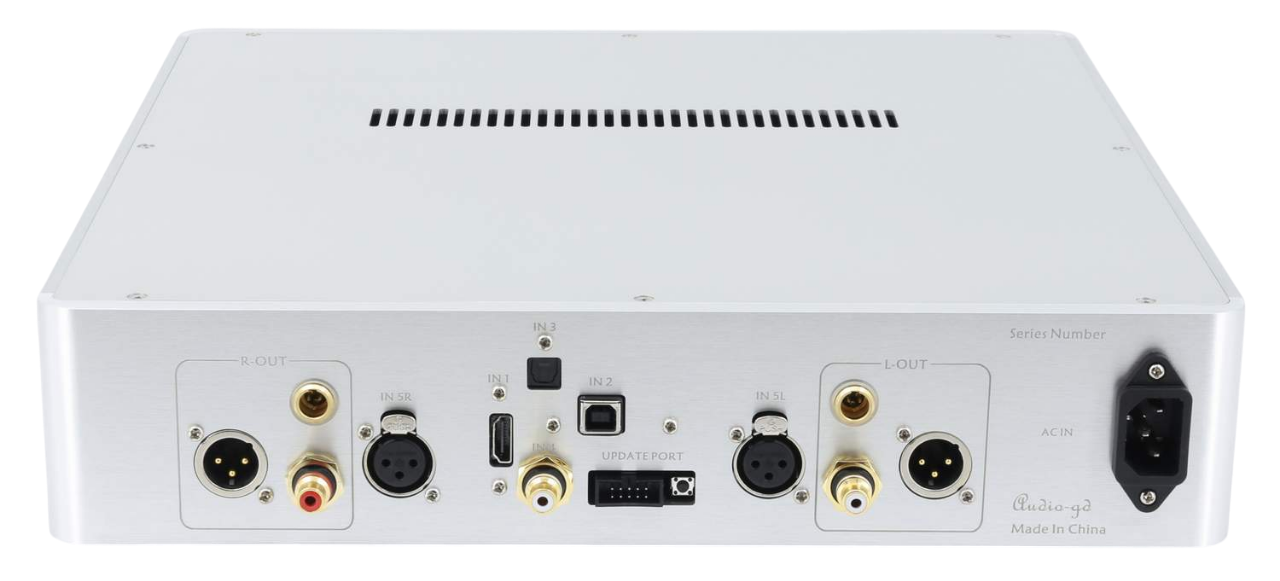

Inputs: USB, I2S, Coaxial RCA, & Coaxial BNC
Outputs: 2.5V RCA, 2mA ACSS(Audio GD proprietary) & 5.0V Balanced XLR (fixed) upto 19.0V (pre-amp output mode)
Headphone Amp Output: 9.5W into 25Ω/1.2W into 300Ω(Balanced XLR) 2.7W into 25Ω/350mW into 300Ω(Single Ended 1/4″)
Dimensions(W x L x H): 360 mm x 360 mm x 85 mm
Weight: 7.6 kg
PCM decoding upto 32bit/384kHZ and DSD512 via USB & I2S
PCM decoding upto 32bit/192kHZ and DSD 256 via Coaxial RCA, Coaxial BNC and AES/EBU
PCM decoding upto 32bit/96kHZ and DSD 128 via optical
Upto 8x oversampling via OS8 mode
| Weight | 7.6 kg |
|---|---|
| Dimensions | 360 × 360 × 85 mm |
| S/N Ratio | >120DB |
| THD+N | <0.01% |
| Gain | L mode : +12DB |
| Channels imbalance | < 0.05DB |
| Frequency Breadth | 20Hz – 20KHz (< – 0.5DB |
| Output Level | Headphone output : 19V RMS (balance) |
| Headphone amp output power level (Only for headphone over 15 ohms.) | Balanced mode- 9500mW / 25 ohm Single-Ended mode- 2700mW / 25 ohm |
| Output impedance | 1 ohm / Headphone output |
| Input Sensitivity | 0.5 Vp-p(75 Ohms, Coaxial) |
| Support Operate Systems (USB) | Windows, OSX, Linux, ISO |
| Support Sampling | USB & IIS : 44.1kHz – 384kHz /32Bit DSD64-512 |
| Power Requirement | 1 Version 100-120V AC 50/60 Hz |
| Power Consumption | 24W |
