Description
R2R DAC capable of:
PCM decoding upto 32bit/384kHZ and DSD512 via USB & I2S
PCM decoding upto 32bit/192kHZ and DSD 256 via Coaxial
Availability: In Stock

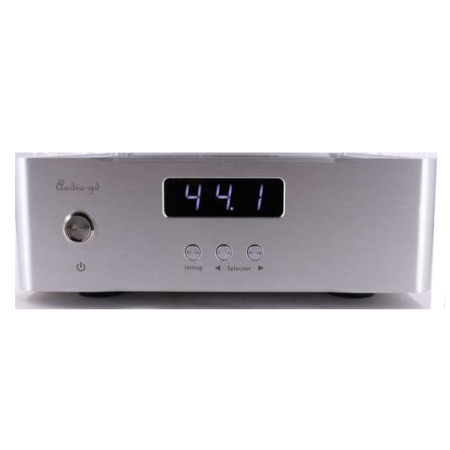

R1-NOS
Truly balanced fully discrete R2R ladder DAC
Brands: Audio-GD
SKU: H04998402
₱ 58,200.00
Truly balanced fully discrete R2R ladder DAC using 8 fully discrete DA converters(2-DA-7 boards).
Inputs: USB, I2S, & Coaxial
Outputs: 2.5V RCA, 2mA ACSS(Audio GD proprietary) & 5.0V Balanced XLR
Dimensions(W x L x H): 240 mm x 280 mm x 85 mm
Weight: 4.5 kg
Description
Specifications
Additional information
| Weight | 4.5 kg |
|---|---|
| Dimensions | 280 × 240 × 85 mm |
| S/N Ratio | >110DB |
| Output impedance | <10 ohm (RCA/ XLR) |
| Output Level | 2.5V (RCA) |
| Frequency Response | 20Hz – 20KHz (< – 0.5DB) |
| THD+N | <0.03% |
| Input Sensitivity | 0.5 Vp-p ( 75 Ohms, Coaxial ) |
| Support Operate Systems (USB) | Windows, OSX, Linux, ISO |
| Support Sampling | USB & IIS : 44.1kHz – 384kHz /32Bit DSD64-512 |
| Power Requirement | Version 1: 100-120V AC 50/60 Hz |
| Power Consumption | 12W |
| Accessories | AC power cord X1 |
